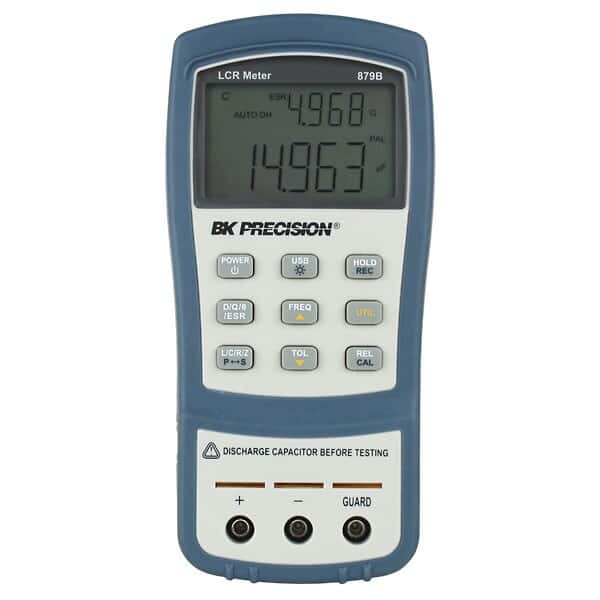

B&K Precision 879B Universal Deluxe LCR Meter

Representative image only.
B&K Precision Mfr # 879B – Item # EW-20036-83
Precision component testing with the press of a button
  • 0.5% basic accuracy
  • Dual LCD display
  • Two selectable test frequencies of 120 Hz & 1 kHz (plus 100 Hz & 10 kHz model 879B)
  • Auto ranging
  • Mini USB interface
  • 3 Year warranty
  • 3 year warranty

$416.00USD / Each
sign in for your price.

$193.00 - $265.00USD / Each

for an additional
$193.00USD / Each
for an additional
$265.00USD / Each
Time to recalibrate? Click on the calibration service to view details, then order.

SPECS & DESCRIPTION

Specifications & Description

  • Frequency Accuracy±0.1%
  • Test Frequency4 Selectable: 100Hz=100 Hz, 120Hz=120 Hz, 1KHz=1010 Hz, 10KHz=9.6 KHz
  • Test Signal Level0.6Vrms approx.
  • Tolerance Mode1%, 5%, 10%, 20%
  • Response TimeApprox. 1 second/DUT (device under test) (at manual range)
  • Ranging ModeAuto & Manual
  • Parameters MeasuredL/C/R/D/Q/q
  • Measurement Rate1 time/second, nominal
  • DisplayL/C/R: Maximum display 19999; D/Q: Maximum display 999 (Auto Range)
  • Battery1 9V (included)
  • DescriptionUniversal Deluxe LCR Meter
  • Warranty3 Years
3 Year Warranty

Key Features

  • 0.5% basic accuracy
  • Dual LCD display
  • Two selectable test frequencies of 120 Hz & 1 kHz (plus 100 Hz & 10 kHz model 879B)
  • Auto ranging
  • Mini USB interface
  • 3 Year warranty
  • 3 year warranty

More About this Item

These LCR meters perform quick, fully auto-ranging capacitance, resistance, and inductance measurements. Components can be measured with selectable test frequencies in series or parallel modes as desired. The 40,000 count main LCD displays the measured component value, and the secondary 10,000 count display reads D or Q (plus phase angle and ESR measurements model 879B).
